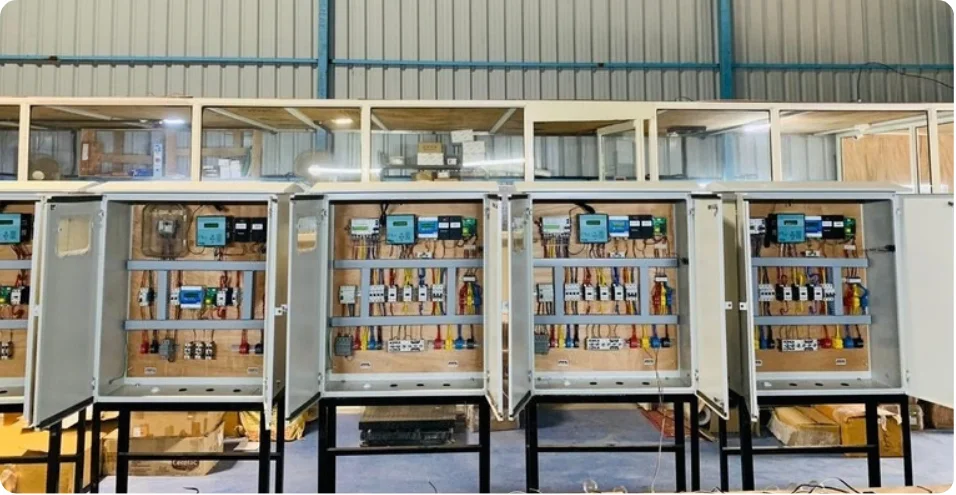

CCMS PANEL

A Centralized Control and Monitoring System (CCMS) street light panel is an automated feeder pillar used to operate, schedule, and track groups of 30 to 100+ street lighting poles. It uses IoT, GSM/4G gateways, and cloud dashboards to deliver remote switching, energy metering, and instant fault detection without manual intervention.

KEY FEATURES

  • Remote Control: Turn lights ON/OFF or dim them dynamically via web or mobile interface.
  • Real-Time Monitoring: Track voltage, current, power factor, and kilowatt-hours consumed per phase.
  • Automated Scheduling: Uses Real-Time Clocks (RTC) or astronomical timers synchronized with local sunrise and sunset.
  • Fault & Theft Alerts: Instant SMS, email, or cloud dashboard notifications for lamp failures, power outages, open panel doors, or cable theft.
  • Protection Gear: Includes MCBs, contactors, surge protection devices (SPDs up to 40kA), and overload/short-circuit safeguards.

TECHNICAL SPECIFICATIONS

  • Configuration: Single-phase or three-phase input (440V AC, 50 Hz).
  • Current Rating: Typically ranges from 40A to 200A+ per phase depending on feeder load.
  • Enclosure Rating: Weatherproof IP54 or IP65, powder-coated mild steel or SMC body designed for outdoor pole or plinth mounting
